Purpose

JD check valves are ideally suitable for vertical and horizontal application. A range of Check Valves (Non-Return Valves) suitable for oil, gas, water, refining, power and chemical applications where the prevention of flow reversal is mandatory.

DESIGN & OPERATING PRINCIPLE

DESIGN – JD Wafer Type Check Valve has short face-to-face dimensions and low weight allows a simple space saving installation between the companion flanges. The valves are suitable to mounting between weld neck or slip on type companion flanges of different standards.They are specially developed for applications where a low-pressure loss is essential.

OPERATING PRINCIPLE-Opening and closing of the valve will take place at an extremely low-pressure difference over the valve disc. The eccentric disc shaft combination with the disc seat guarantees a positive shut off returning media. Wafer check valves are becoming the preferred type of check valve for most applications, due to their compact design and relatively low cost.

Availability

Availability [Size] : DN40 /40MM / 1 1/2" To DN600 /600MM / 24"

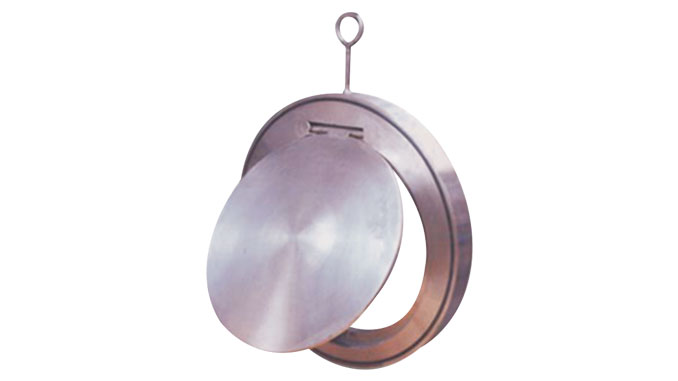

Single / Dual Plate Wafer Type Check Valve
Availability [Size] : DN40 /40MM / 1 1/2" To DN600 /600MM / 24"
Body : CI / WCB [CS] / CF8 [SS 304] / CF8M [SS 316] / CF3M [SS 316L]
Disc : MS / SS304 / SS 316
Seat : EPDM / Nitrle / Neoprene / PTFE
End Connection : Wafer Type, Flangeless, Suitable To Mount Between Class 150 Flanges
Pressure Rating : ASA 125# / 150# / 300# / PN10 / PN16 / PN25
Valve Design : API 6D
Pressure Testing : API 598
Face to Face : ANSI B 16.10 / API 6D
Mounting Between : ANSI B 16.5 / BS 10 Table / DIN / IS 6392
